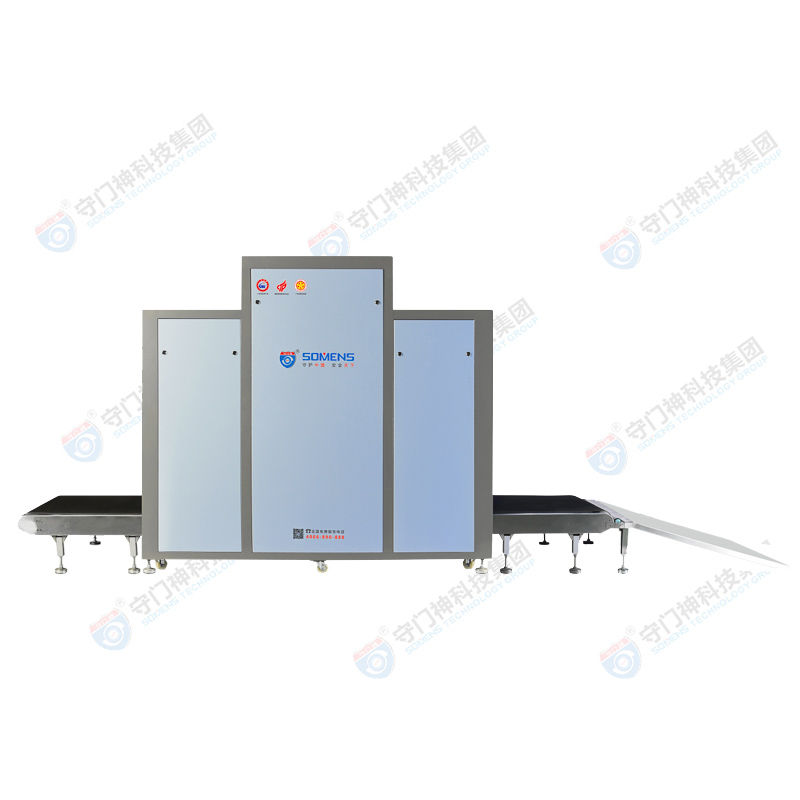

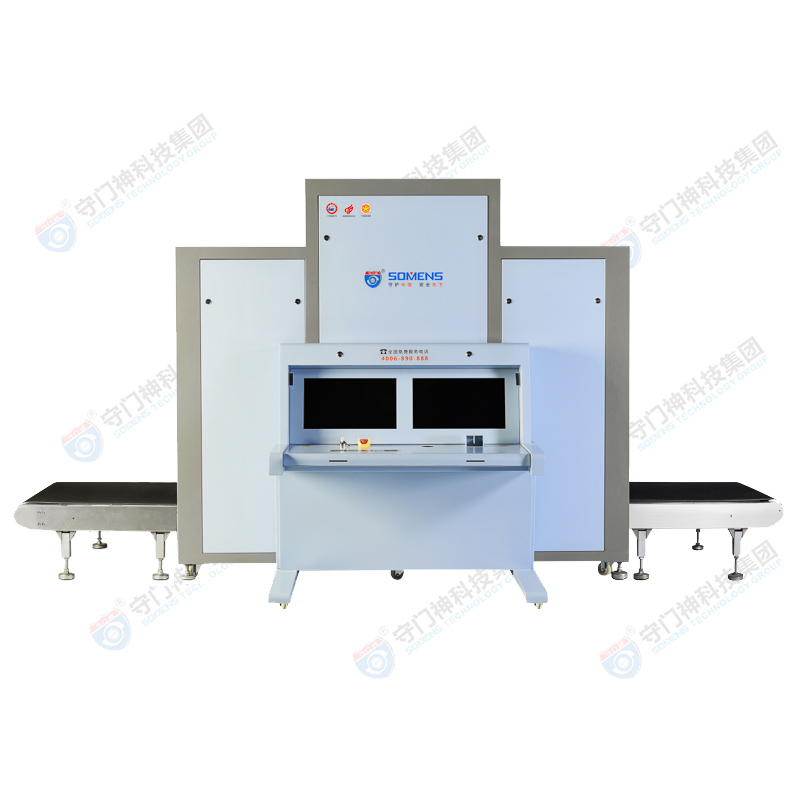

SOMENS-100100 X-ray safety inspection equipment_Express logistics large security inspection terminal station security X-ray machine

MS-100100 X-ray safety inspection equipment, mainly used in airports, subways, railway stations, bus stations, museums, embassies, customs ports, border defense terminals, logistics centers, postal express, tourist attractions, sports and cultural venues, conference centers, Important departments of the Expo Center, large-scale events, scientific research institutions, financial power, hotel schools, public security laws, factory enterprises, and other public places.

Product category：Large-scale logistics, terminal, customs X-ray security inspection machine
Product model：SOMENS-100100

National Service Hotline 400-8353-880

Consultation

Product details
Product parameters

| Product Description

SMS-100100 X-ray security inspection equipment, mainly used in airports, subways, railway stations, bus stations, museums, embassies, customs ports, border terminals, logistics centers Important departments such as postal express, tourist attractions, sports and cultural venues, conference centers, exhibition centers, large-scale events, scientific research institutions, financial power, hotel schools, public security laws, factory enterprises, and other public places. It is mainly used to detect prohibited items such as guns, knives, detonators, fireworks and firecrackers hidden in large pieces of luggage, goods, parcels, mail, small bags, suitcases, satchels, backpacks, etc.

SOMENS-100100 Technical Parameters
Channel size	1000mm (width) × 1000mm (height)
Conveyor speed	0.22m/s
Conveyor maximum load	250kg
Film security	ISO1600 film security
Line resolution	0.0787mm Single solid copper wire
Penetration resolution	Can achieve a single solid core copper wire with a diameter of 0.1 6mm
Spatial resolution	Level: 1.0mm; Vertical: 1.0mm
Penetration	40mm Steel plate
Tube voltage	100~160 KV(adjustable)
Tube current	0.4~1 .2mA(adjustable)
Beam emission angle	80°
Single dose	≦0.8μSv/h
Leakage dose rate	≦0.16μSv/h
Power loss	1.0KW(maximum)
Operating Voltage	220VAC(±10%) 50/60Hz
Cooling cycle	Sealed oil cooling / 100%
X-ray sensor	L-shaped photodiode array detector (multi-energy), 12-bit accuracy
Beam direction	Bottom type
Penetration resolution	Can achieve a single solid core copper wire with a diameter of 0.1 6mm
monitor	19.5-inch high resolution LCD display
Computer operating system	Windows7 64Bit
One-button shutdown	Shut down the key only, the device automatically shuts down safely, reducing equipment failure
Energy saving and environmental protection design	Energy saving and environmental protection design
Image resolution and gray image	Resolution: 1920×1080; gray image: 65536
Image Processing	24bit real-time processing, color/black-and-white image, reverse image display, edge enhancement, object outline edge and image detail are more clear, image is highlighted, image is dimmed, image is pulled back before 20 pictures, alarm function, image retrieval.
Image saving, selection, enlargement and recovery	Real-time storage of 100,000 frames, 1-9 selections can be selected, and 2-68 times real-time magnification, the image display returns to the original state, and the image can be recalled.
Multi-energy color display	Organics are shown in orange, inorganics are shown in blue, and mixtures are shown in green High-energy, low-energy penetrating display and switching: Improve the contrast between the bright and dark areas of the image, making the easy-to-penetrate area and the difficult-to-penetrate area clearer, and the two energy switches are displayed.
Fault self-diagnosis function	Automatically judge when the fault occurs, and promptly give prompt information for easy maintenance.
Drug explosive assisted detection	Assist in detecting dangerous goods such as some typical drug explosives. Unique features: date and time display, working status, image thumbnail display, operator identification code, baggage count, emergency stop, power-on self-diagnosis function, network interface, system operation and X-ray emission timing.
Storage temperature / humidity	-20℃ ~ + 60℃ / 20% ~ 95%(not condensing)
Working temperature / humidity	0℃ ~ 45℃ / 20% ~ 95%(not condensing)
Noise level	55dB
Leakage current test	2.1mA
One-touch switch	One-touch switch control
LED display	At the import and export end, the device is equipped with an LED display, which can display the prompt text such as “Please queue in order, all luggage pass security check”. (Text can be optionally entered).
Video image acquisition	The wide-angle camera is used to capture the video image, and the video image of the packaged person and the image of the object to be inspected and the X-ray image of the object to be inspected are displayed one by one on the same computer display screen, and the video image can clearly record and play back the package action of the holder. Or take the package action.
